Easy Operation CNC Linear Profiling Machine For Curve Linear

Name: Easy Operation CNC Linear Profiling Machine For Curve Linear
Brand: XIANDA MACHINERY
Price: 1 USD

Quality Easy Operation CNC Linear Profiling Machine For Curve Linear wholesale

Brand Name : XIANDA MACHINERY

Model Number : DNFX-1300/1400 CNFX-1300/1400

Place of Origin : Jinjiang, Fujian, China

Certification : API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF

MOQ : 1 SET

Price : To be negotiable

Packaging Details : Plastic Package, Suitable for Sea Transportation

Delivery Time : 1 month

Payment Terms : L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others

Supply Ability : 1000 Sets/Year

Cutting Depth : High

Cutting Edge : Smooth

Operation Mode : Automatic

Control System : Computerized

Cutting Surface : Flat

Product Name : Stone Profile Cutting Machine

Cutting Material : Stone

Cutting Width : Wide

Trolley Size : 1300*3000mm/1400*3500mm

Cutting Method : Laser

Cutting Accuracy : High

Model No : LCMM-1300/1800

Application : Machinery & Hardware

Max Cutting Diameter : 2500mm

Usage : Cutting

Maintenance : Easy

Hs Code : 84641090

Safety Protection : High

Max Cutting Height : 1150mm

Blade Diameter Range : 400-600mm

Max Cutting Depth : 150mm

Power Source : Electric

Contact Now

Product Description:

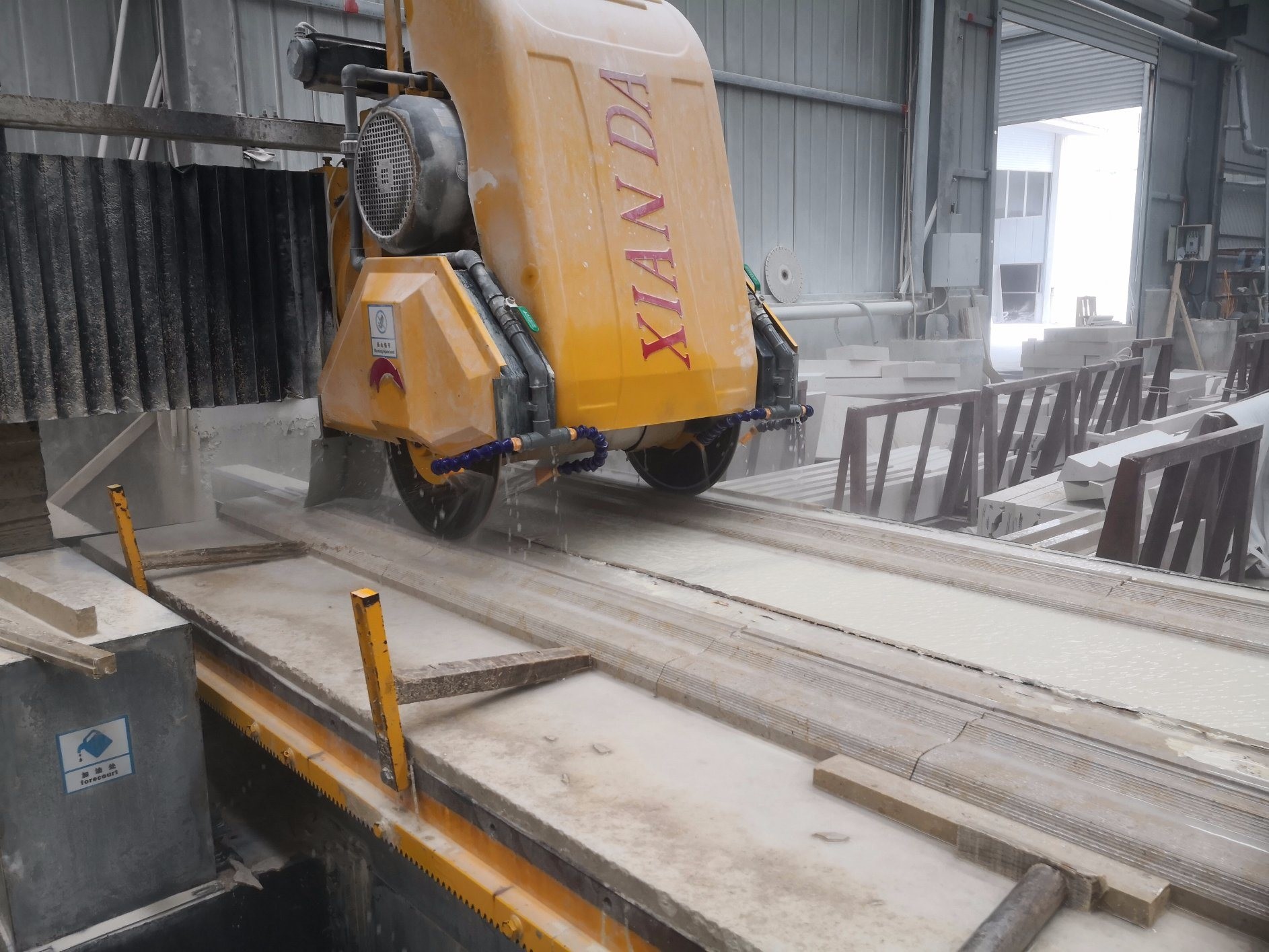

This machine adopts PLC / CNC system with double blades, it's suitable for profling the linear, also it can cut the square balusters. With extra rotating table, it can cut the curve linear.Easy operation makes it popular especially for new operators.

Support and Services:

Installation and setup of the machine
Training and user manuals
Regular maintenance and repair services
Technical support via phone or email
Replacement parts and accessories

Our team of experts is dedicated to providing excellent customer service and ensuring that your stone cutting machine is operating at optimal performance. Contact us for any technical support or service needs.

Parameter	Unit	DNFX-1300/1400	CNFX-1300/1400
Blade diameter	mm	350-600	350-600
Max lifting travel of cutting frame	mm	600	600
Trolley size	mm	1300*3000	1400*3500
Main motor	kw	15	15
Gross power	kw	18.5	18.5
Outline dimension	mm	550023002300	600024002300
Gross weight	kg	4000	4500
Water consumption	m³/h	6	6
